Monday, 12 May 2014

271–5010 Health Care Eligibility Benefit Response- Loop 2000B And 2100B Information Receiver Name


Use the Information Source Level HL to identify the original entity who received the response i.e Doctor Office

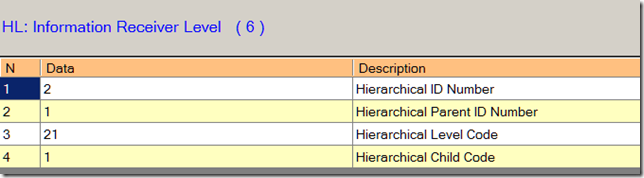

Hierarchical ID Number
A unique number assigned by the sender to identify a particular data segment in a hierarchical structure.

HL01 shall contain a unique alphanumeric number for each occurrence  of the HL segment in the transaction set. For example, HL01 could be used to indicate the number of occurrences of the HL segment, in which case the value of HL01 would be “1" for the initial HL segment and would be incremented by one in each subsequent HL segment within the transaction. HL01 must begin with “1" and be incremented by one each time an HL is used in the transaction. Only numeric values are allowed in HL01.



Loop Seg ID Segment Name Format Length Ref# Req Value
2000A HL Billing Hierarchical Level 2 R HL
Element Separator AN 1 *
HL01 Hierarchical ID Number AN 1/12 628 R 1
Element Separator AN 1 *
HL02 Hierarchical Parent ID Number 0 1/12 734 Not Used
Element Separator AN 1 *
HL03 Hierarchical Level Code ID 1/2 735 R 21  (Information Receiver)
Segment Terminator ~
HL04 Hierarchical Child Code ID 1/1 736 R 1
Segment End ~

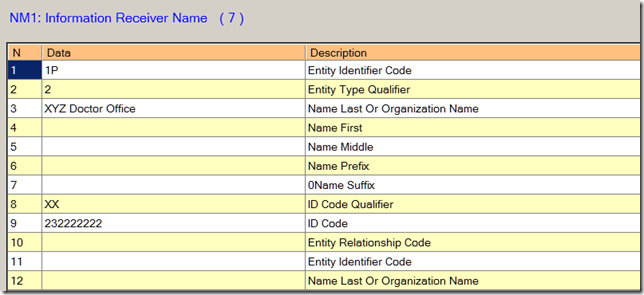

Loop 2100B Information Receiver Name

Seg ID Segment Name Format Length Ref# Req Value
NM1 Information Source Name ID 3 R NM1
Element Separator AN 1 *
NM101 Entity Identifier Code ID 2/3 98 R See below for Set of values
Element Separator AN 1 *
NM102 Entity Type qualifier ID 1/1 1065 R 2 (See below for more Information)
Element Separator AN 1 *
NM103 Name Last or Organization Name AN 1/60 1035 R Receiver Name
Element Separator AN 1 *
NM104 Name First AN 1/35 1036 Not used
Element Separator AN 1 *
NM105 Name Middle AN 1/25 1037 Not Used
Element Separator AN 1 *
NM106 Name Prefix AN 1/10 1038 Not used
Element Separator AN 1 *
NM107 Name Suffix AN 1/10 1039 Not Used
Element Separator AN 1 *
NM108 Identification code Qualifier ID 1/2 66 R See below for Set of values
Element Separator AN 1 *
NM109 Identification code AN 2/80 67 R ID Value
Segment Terminator ~


NM101 - Entity Identifier Code
Code List
Code Definition
1P Provider
2B Third Party Administrator
36 Employer
GP Gateway Provider
P5 Plan Sponsor
PR Payer
80 Hospital
FA Facility


NM102 - Entity Type Qualifier
Code qualifying the type of entity
Code Definition
1 Person
2 Non-Person Entity


NM108 – Identification Code Qualifier
Code List
Code Definition
24 Employer Identification Number
46 Electronic Transmitter Identification Number (ETIN)
FI Federal TaxPayers Identification Number
NI National Association of Insurance Commissioners Identification
PI Payor Identification
XV Plan ID
XX National Provider Identifier


Sample :

NM1*1P*2*XYZ Doctor Office*****XX*232222222
